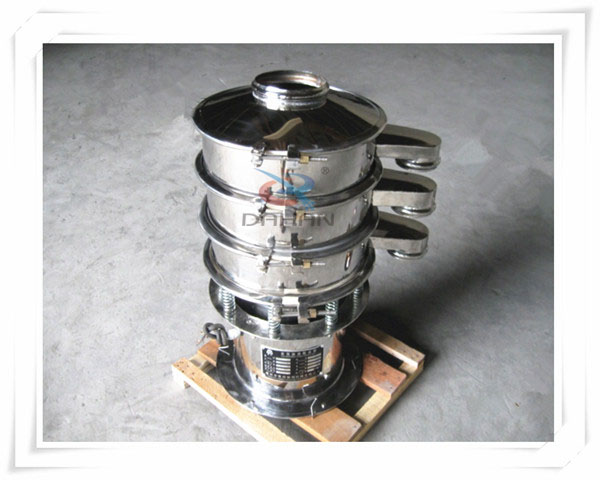

Rotary vibrating sieve

600mm rotary vibrating sieve
stainless steel rotary vibrating screen
1000mm hopper type circle vibratory screen
Multilayer SUS vibro sieve
1800mm high capacity round vibrating sifter

Manual Mixing:Rotary vibrating sieve is a kind of high precision fine powder screening machinehigh efficiencydesign is exquisite and durable any powder mucoid screeningeasy to change screento operate and to cleanmesh is not blockedpowder is not float in the skyand mesh to 500 mesh or 0.028 mm.

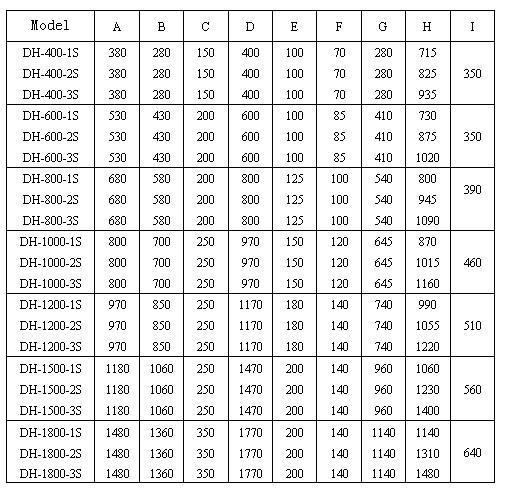

                             Rotary vibrating sieve standard models


About "rotary vibrating sieve"
Rotary vibrating sieve is a kind of high precision fine powder screening machine, works by the upright motor as vibration source, installed on both ends of the motor on the eccentric hammer, the motor rotation movement into horizontal vertical slope of three dimensional movement, then pass the movement to the screen surface at the ends of the regulation on the phase Angle, can change the course of movement on the surface of the material in the screen, vibration due to its operation principle, many enterprises are also called the three dimensional vibrating screen filter, according to shape structure is part of the customers' call for circular screen, from the material point of standard sieve and normal vibration sieve, and material contact part of the standard of 304 stainless steel material, base for carbon steel material, the ordinary type of the brick for carbon steel material.

Rotary vibrating sieve`s feature
♦ High efficiency,design is exquisite and durable, any powder mucoid screening.
♦ Easy to change screen, to operate and to clean.
♦ Mesh is not blocked,Powder is not float in the sky,Mesh to 500 mesh or 0.028 mm.
♦ Impurity, coarse material automatic discharge;Can connect operation.
♦ Unique network frame design, screen mesh use time long, fast to replace the network only for 3 to 5 minutes.
♦ Small volume, saving space, easy to move.
♦ Screen up to five layers.

Rotary vibrating sieve applicable industries
Chemical industry: resin,coating,drug industry,cosmetic,oil,Herbal powder,ect.
The food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice, etc.
Metals, metallurgical mining: aluminite powder,lead powder,copper powder,ore,alloy powder,electrode powder,abrasive powder,refraclory materials,kaolin,lime,aluminium oxide,quartz sand,ect.

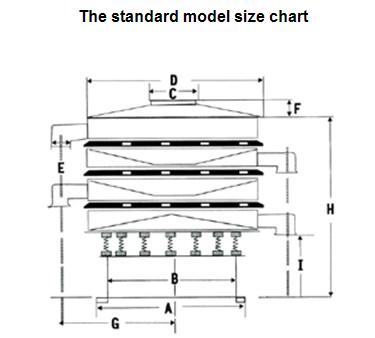

Roraty vibrating sieve structure principle diagram

The material of Rotary vibrating sieve

Rotary vibrating sieve Application Function
