800mm multi-layer valve Ultrasonic vibrating sifter

multi-layer Ultrasonic vibrating sifter
valve Ultrasonic vibrating sifter
five discharge hole with four screen mesh
vibrating sifter`s ultrasonic

Manual Mixing:

Reduce or not produce clear screen time.
Do not produce powder pollution.
Keep the mesh size,stable screening accuracy.
Decomposition of adhesive material,reduce on the screen.
Reducing frequency of screening.

Valve Ultrasonic vibrating sifter makes processed material do traditional three dimensional vibrations,and at the same time it adds another vibration (mechanical waves) of low-amplitude and high-vibration frequency to achieve good screening result for sieving super-fine processed materials.
Ultrasonic vibrating sifter screening system is a kind of simple and practical,reliable screening system,it is currently the most effective solution of mesh plug and domestic screen of a major technological breakthrough.

►Why to choose ultrasonic vibrating sifter

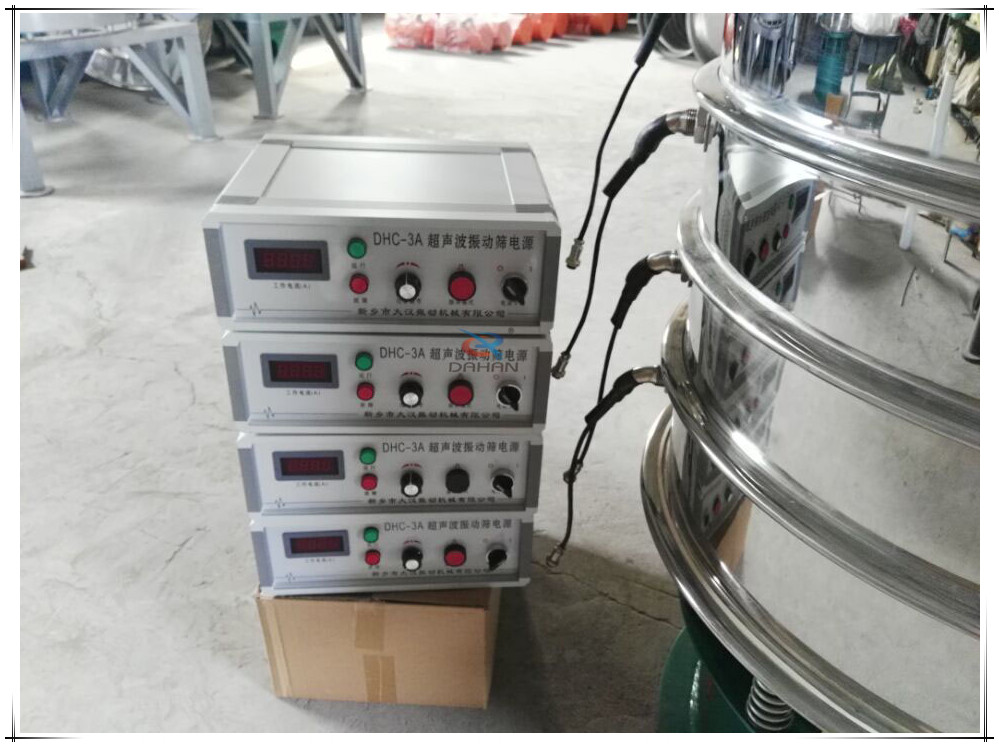

Ultrasonic vibrating sifter is able to convert electric energy with 220V,50Hz or 110V,60Hz into high-frequency electric energy with 18KHz and then puts it into ultrasonic energy exchanger to make it change into mechanical vibration with 18KHz and attains the purpose of high-efficiency sieve and cleaning mesh, which makes it easy to sieve the superfine powder. This system uses a low amplitude, high frequency ultrasonic vibrating wave(mechanical wave)on the sieve mesh by the traditional vibrating sieve to improve the sieving abilities of superfine powder. This product is suitable for the users who demand the high additional value and fine powder.
►Ultrasonic technology parameters
The biggest ultrasonic power output:200W
Output rated voltage:900V
Maximum Output Current:1A(limiting current)
Fuse:100-120V: 2*2.5A slo blo 200-240V: 2*1.25A slo blo
Protection class:IP65
Pollution degree:2
Environment temperature:-10-35°C
►Ultrasonic vibrating sifter feature
By improving the low density of powder in the gravity settling down and sliding,improve the high density of metal in the front-end ports stranded or wedging and the adhesion effect of electrostatic powder,to improve the quality of screening efficiency and screening.In screening pass rate,usually more than the ordinary vibration sieve pass rate of 50% to 440%.
(1)To reduce or not produce clear screen time.
(2)Do not produce powder pollution.
(3)Keep the mesh size,stable screening accuracy.
(4)Decomposition of adhesive material,reduce on the screen.
(5)Reducing frequency of screening.
