WQA18-65 SS_movable Horizontal centrifugal sieve

movable Horizontal centrifugal sieve
movable Horizontal airflow sieve
movable Horizontal airflow screen
airflow screen

Manual Mixing:

Horizontal centrifugal sieve is a kind of screening machine making use of centrifugal force and cyclone for material separation.The whole machine is ina small size and light so that it is stable in operationfree from vibration and noiseand with its good sealed structureit is free from dust and performs in high efficiency.

► Introduction and working principle

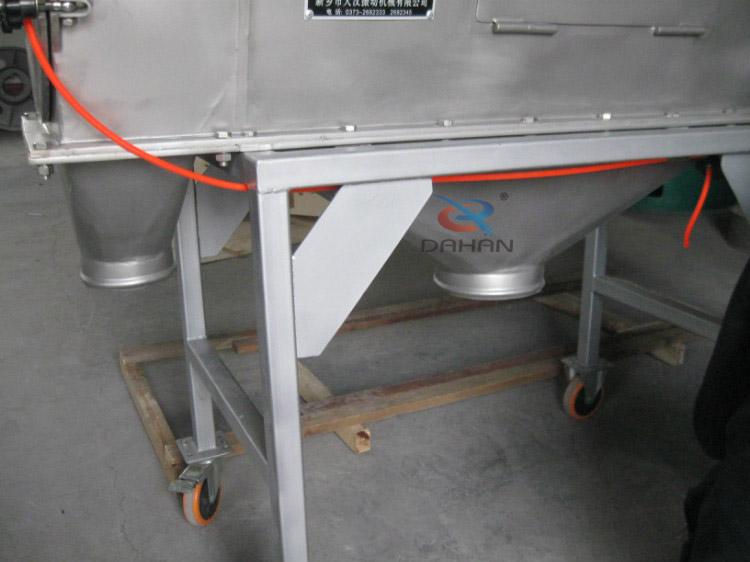

WQS horizontal centrifugal sieve is also called horizontal airflow screen or horizontal airflow sieving machine.The horizontal centrifugal sieve is a kind of screening machine making use of centrifugal force and cyclone for material separation.It is available with a cylindrical sieving chamber in which there are helical paddles supporting rotation motion.Centrifugal sieve is designed with two outlets. Fine materials that can pass through the screen mesh are discharged via the fine material outlet,while others that can not pass through the screen are discharged from the coarse material outlet along the wall of the screen cylinder.

►Structure diagram





►Features
1.Single or multiple machine use,for a long time continuous operation,safe and reliable.
2.The new outer spherical bearing,prolong service life.
3.The machine is small in size,light weight,smooth and no vibration,no noise,sealed performance is good,no dust,high efficiency.
4.The essence of agglomerate material is broken again.
5.Sieve washed by a whirlwind,can automatically clear the net.
6.The shell structure is novel,simple installation,easy to control.
7.The machine can form a complete set,with the pneumatic conveying system string directly into the wind road,save resources.
8.Special design,meet special requirements.
