Manual Mixing:

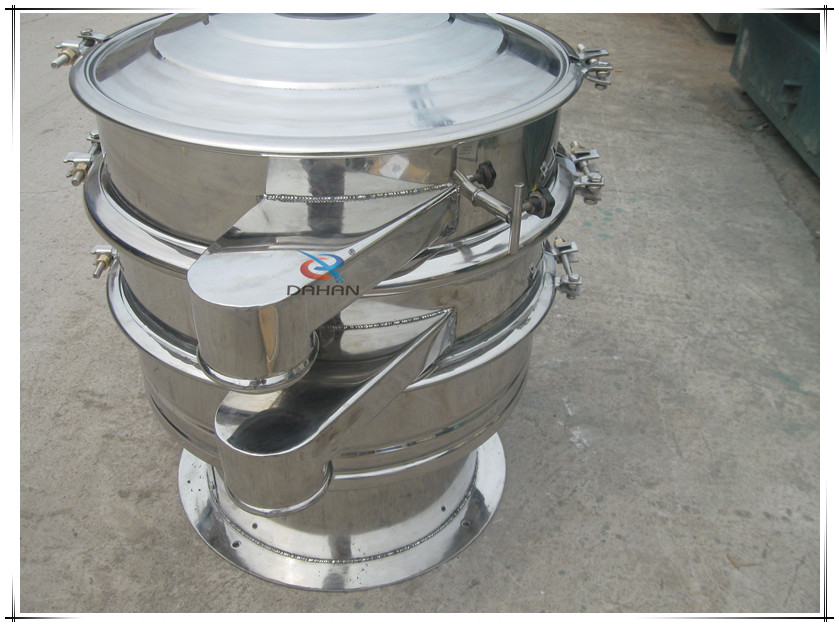

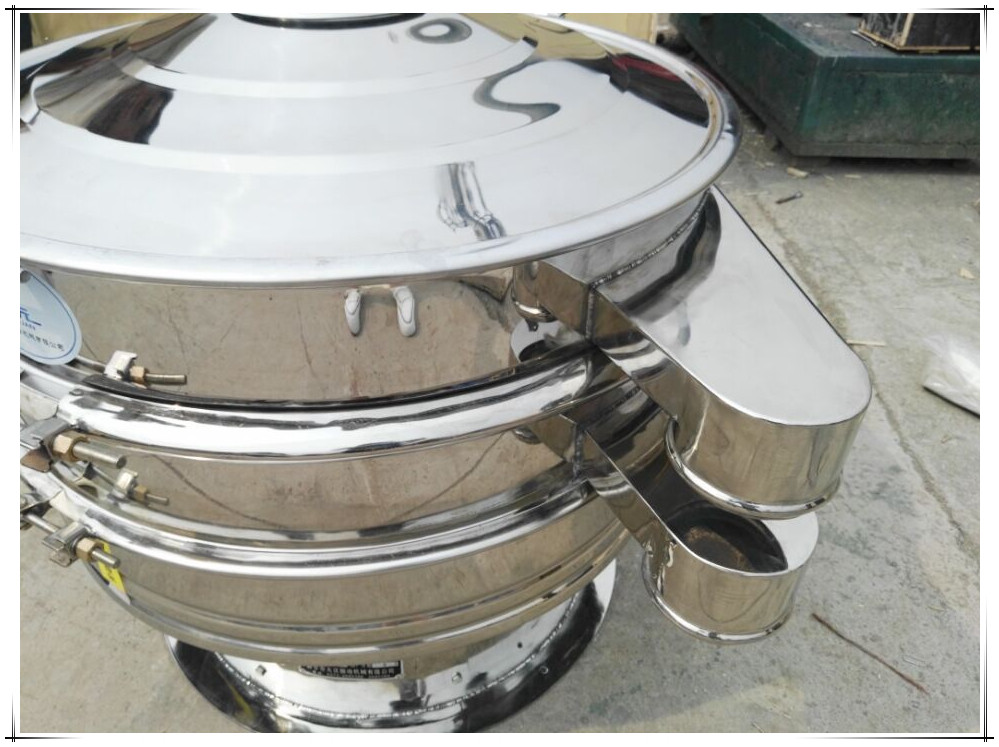

Tapioca powder round vibrating sieve is mounted with 0.25kw vertical vibrating motor.There are the diameter of 600mm,one layer screen mesh with two dischange holes.Mainly used in screening material with high output.Accept customized service.
Tapioca powder round vibrating sieve is a kind of high precision fine powder screening machine, works by the upright motor as vibration source, installed on both ends of the motor on the eccentric hammer, the motor rotation movement into horizontal vertical slope of three dimensional movement, then pass the movement to the screen surface at the ends of the regulation on the phase Angle, can change the course of movement on the surface of the material in the screen, vibration due to its operation principle, many enterprises are also called the three dimensional vibrating sieve filter, according to shape structure is part of the customers' call for circular screen, from the material point of standard sieve and normal vibrating sieve, and material contact part of the standard of 304 stainless steel material, base for carbon steel material, the ordinary type of the brick for carbon steel material.
►Features
►Features
1) High efficiency, refined design, duration, any powders and mucilage are suitable for using.
2) Easily replace the screen, simple operation and convenience washing.
3) Never jam the mesh with no powder flying and filter size of the powder between 0.025mm and 0.028mm.
4) Discharge the impurity and coarse materials automobile and operates continuously.
5) Small volume, move easily.
6) The highest layers of the screen are about 5 layers. But 3 layers are suggested.
►Manufacturing details
►The metheds of replace mother-son screen
►The metheds of replace mother-son screen
(1)First loose screw of beam ring,remove the frame,the fine mesh broken removed and replaced with a new fine mesh.
(2)The fine mesh tile in the mother mesh,again put the upper ledge back in place,fine mesh stretched by hand from the surrounding.At both ends of the machine on the side edge of the box,each using a universal clamp,the clamp on the upper frame and the next frame.
(3)The fine mesh around the protruding edge of the frame except reserved two centimeters,the rest all cut.
(4)Beam ring Again put,loose universal clamp.Then tighten the screw of beam ring.
(5) Evenly beat around the beam ring with a soft hammer,locknut,that completed the replacement of a fine mesh.
►Pls provide the following information for us:
1. material name, the density(kg/m3), water content(%).
2. the necessary capacity you required(per hour)
3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel,the other parts is carbon steel or spraying plastic.
d.Contact part with plastic.
4. the dimension of the machine can be designed for you.
5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained.
6. How many layers you need??
7. Pls inform the voltage&frequency in your city.
