Manual Mixing:
With the diameter of 400mmtwo la
All 304 stainless steel.Small and cheap
Easy to movement
Anti-blocking screen mesh
Introduction
Vibrating sieve is designed as a high-precision screening machinery. Rotary vibrating sieve is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.
Working Principle
Working Principle

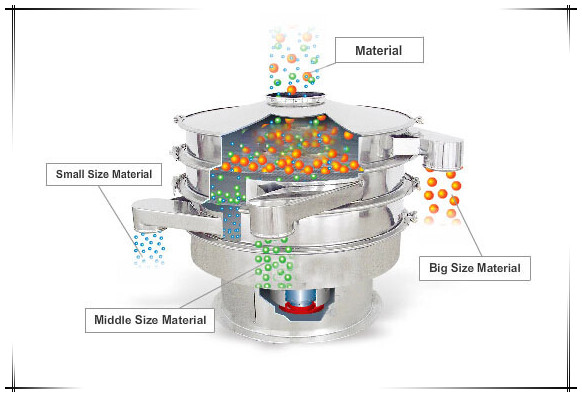

DH series Vibrating Sieve is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine,where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement onto the sieving screener surface.
Technical parameters
Application
Chemical industry: resin,coating,drug industry,cosmetic,oil,Herbal powder,ect.
The food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soya-bean milk, egg powder, rice, soy, fish meal, pineapple juice, etc.
Metals, metallurgical mining: aluminite powder,lead powder,copper powder,ore,alloy powder,electrode powder,abrasive powder,refraclory materials,kaolin,lime,aluminium oxide,quartz sand,ect.
