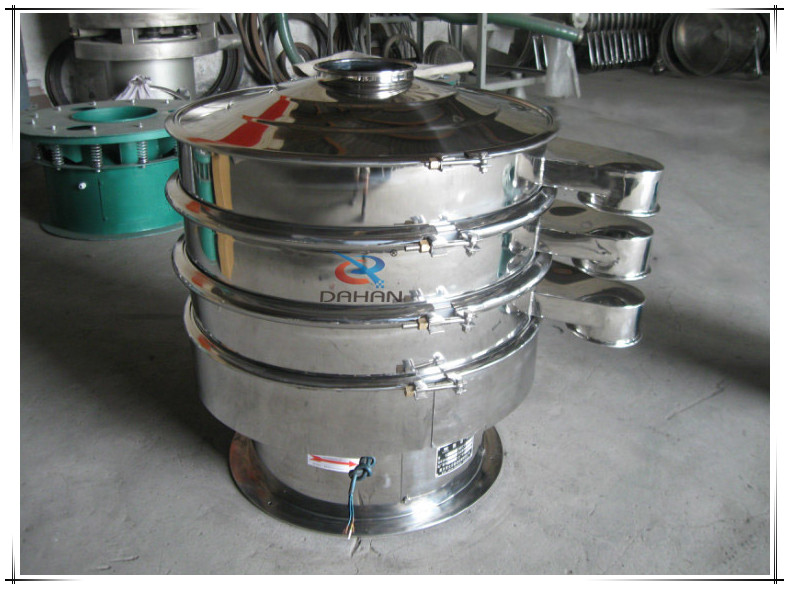

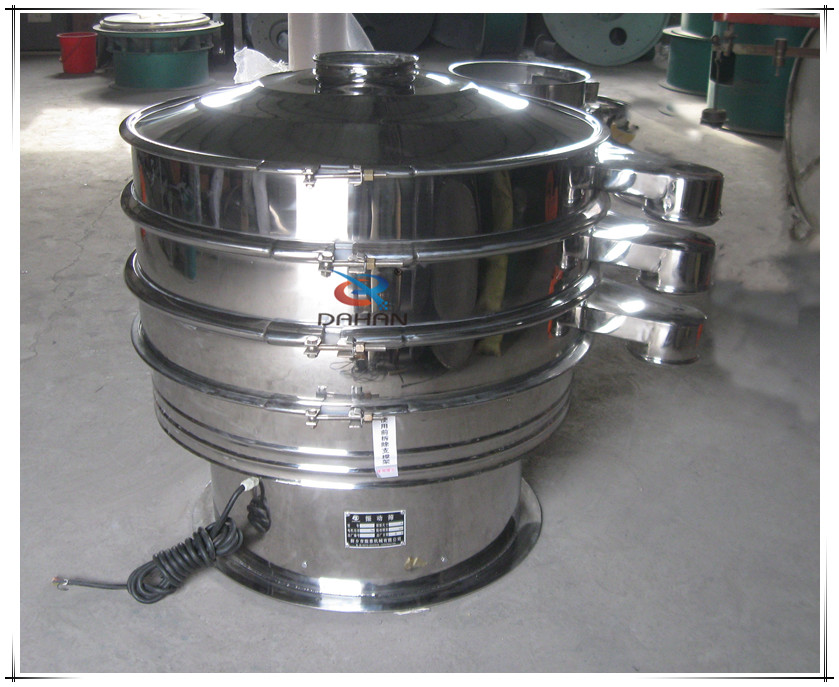

Vibro sieve is a high precision powder screening machine,made of stainless steel and meet Pharmaceutical grade standards requipment.Widely used in Pharmaceutical processing industry.There are special grid structure to easy change screen mesh and anti-blocking screen.

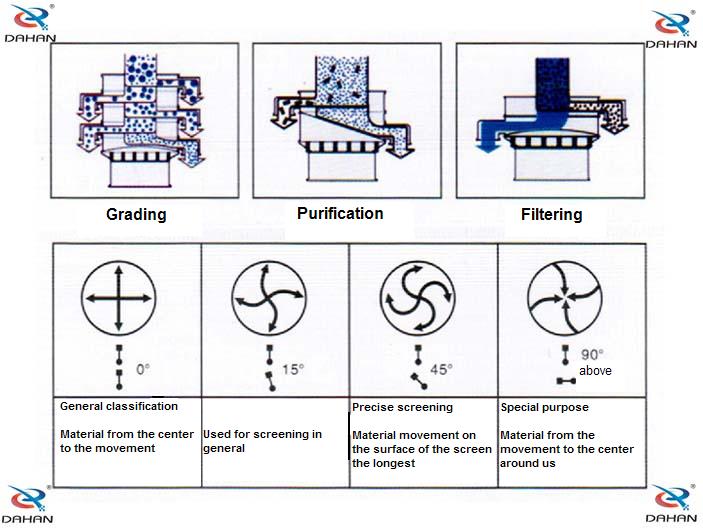

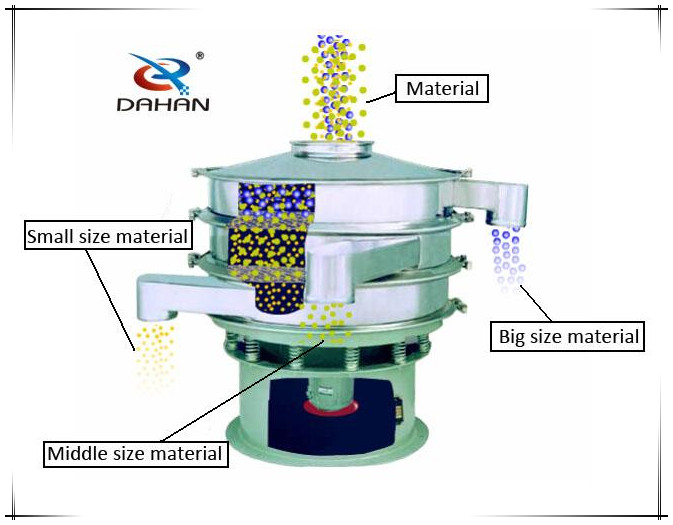

Vibro sieve is designed as a high-precision screening machinery. Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel, all stainless steel and anothers.Vibro sieve use vertical vibrating motor or special vibration exciter as its vibration source.The vibrating motor or special vibration exciter has an eccentric block at both their upper and lower sides.The eccentric blocks can generate a three-diamensional movement in horizontal,vertical and inclined directions.By adjusting the phase angles of the upper and lower eccentric blocks,the material on the screen mesh can change the movement locus,achieving suitable screening performance.
►Technical Parameters
►Features
a.Layers can be up to five layers;
b.Fully enclosed design,continuous operation,small volume,easy to move and low noise;

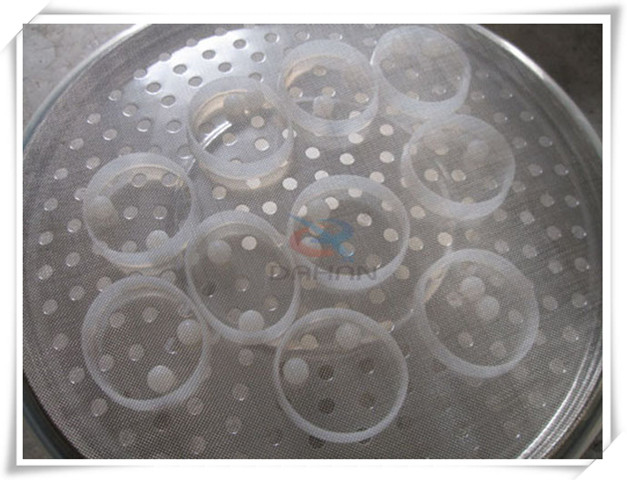

c.Self-cleaning device,avoiding block screen mesh, mesh size can reach to 500 mesh ( 0.028 mm);
d.High precision, high efficiency, kinds of powder, granule and mucus are applicable.
Pls provide the following information for us:
1. material name, the density(kg/m3), water content(%).
2. the necessary capacity you required(per hour)
3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel,the other parts is carbon steel or spraying plastic.
d.Contact part with plastic.
4. the dimension of the machine can be designed for you.
5. How many layers you need?
