Manual Mixing:
Layers can be up to five layers;
Fully enclosed design,continuous operation,small volume,easy to move and low noise;
Self-cleaning device,avoiding block screen mesh, mesh size can reach to 500 mesh ( 0.028 mm);
High precision, high efficiency, kinds of powder,granule and mucus are applicable.
Easy to change screen mesh
►Introduction
Rotary vibrating sieve is designed as a high-precision screening machinery. Rotary vibrating sieve is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers).Material can be divided into all carton steel,contact part stainless steel and all stainless steel.
►Working Principle
DH series rotary Vibrating Sieve is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine,where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement onto the sieving screener surface.
►Technical Parameters

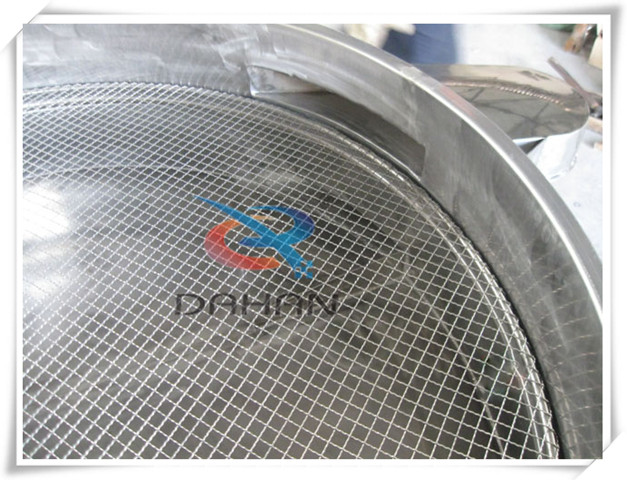

►the Description of rotary vibrating sieve change screen mesh
