Manual Mixing:
High efficiency,design is exquisite and durable, any powder mucoid screening.
Easy to replace screen mesh,easy to operate and easy to clean.
Mesh is not blocked,Powder is not float in the sky,Mesh to 500 mesh or 0.028 mm.
Coarse material automatic discharge

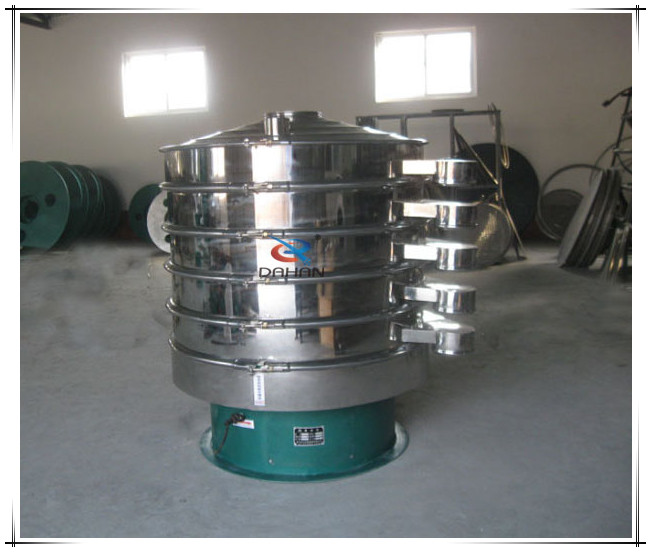

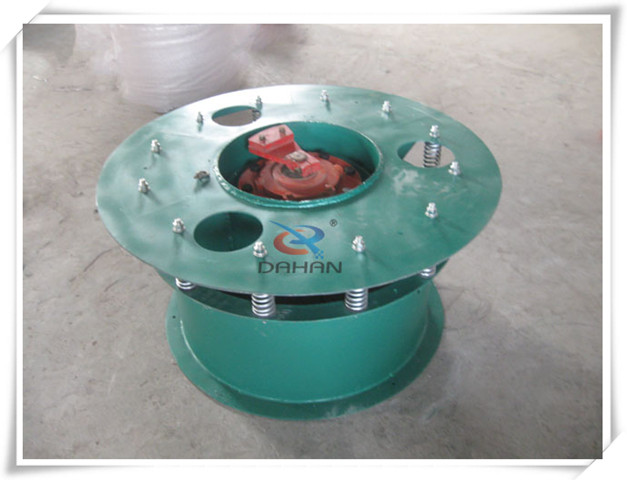

Circle Vibrating sieve is designed as a high-precision screening machinery.DH series circle vibrating sieve is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine,where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement onto the sieving screener surface.
►Parameters
►Functions
►Replace screen mesh operating steps
(1)First loose screw of beam ring , remove the frame, the fine mesh broken removed and replaced with a new fine mesh.
(2)The fine mesh tile in the mother mesh,again put the upper ledge back in place,fine mesh stretched by hand from the surrounding.At both ends of the machine on the side edge of the box, each using a universal clamp, the clamp on the upper frame and the next frame.
(3)The fine mesh around the protruding edge of the frame except reserved two centimeters, the rest all cut.
(4)Beam ring Again put, loose universal clamp. Then tighten the screw of beam ring.
(5) Evenly beat around the beam ring with a soft hammer,locknut,that completed the replacement of a fine mesh.
